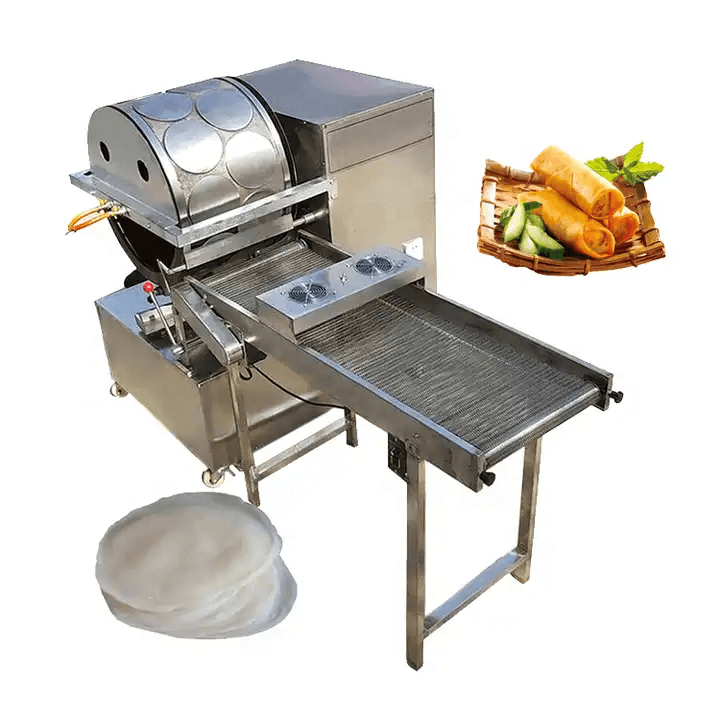

Spring Rolls Pastry Machine Folding Machine Fully Automatic Spring Roll Rolling Machine
Description
Product Description
|
Model
|
SM-303
|
SM-305
|
SM-402
|
SM-404
|
|
Voltage
|
380/220V（50/60HZ）
|
380/220V（50/60HZ）
|
380/220V（50/60HZ）
|
380/220V（50/60HZ）
|
|
Dia. of heating Cylinder
|
400mm
|
500mm
|
800mm
|
1200mm
|
|
Power
|
8/10kw or gas
|
18kw or gas
|
40kw or gas
|
59kw or gas
|
|
Host Power
|
0.4
|
0.4
|
0.4
|
0.75
|
|
Cutter Power
|
0.2
|
0.2
|
0.2
|
0.2
|
|
Belt power
|
-
|
0.36
|
0.36
|
0.55
|
|
Capacity
|
500-1000pcs/h
|
1000-1500pcs/h
|
3500pcs/h
|
9000pcs/h
|
|
Dimension
|
4100*950*1350mm
|
5200*950*1350mm
|
6200*1100*1600mm
|
6500*1300*2300mm
|
|
Rotating speed
|
1-2.5r/min
|
1-2.5r/min
|
1-3r/min
|
1-3r/min
|
|
Weight
|
330kg
|
520kg
|
1000kg
|
1750kg
|
|
Size of the Sheet ( Max.)
|
200mm
|
300mm
|
450mm
|
600mm
|
|
Thickness of the Sheet
|
0.3-2.0mm
|
0.3-2.0mm
|
0.3-2.0mm
|
0.3-2.0mm
|
|
Note
|
Capacity will vary based on spring roll sheet size,
the actual capacity is subject to the quotation list.
|
|||
